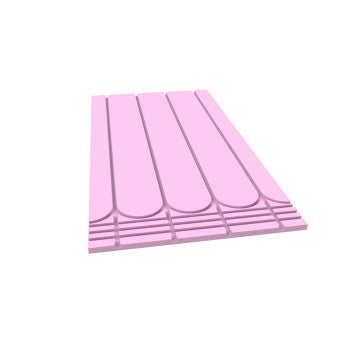

XPS ROUTED INSULATION PANEL 18MM

High density lightweight XPS extruded insulation 18mm UFH panel. Radius bend integral, no end return required, allows greater surface area for heat conductivity. 18mm panel for 12mm pipe at 150mm centers. Suitable for new builds and retro-fit, compressive strength at 10% deflection - 300K PA. Thermal conductivity - 0.033w/mk. 100% recyclable, raw material manufactured in accordance with BSEN13164, Fire Class according to EN13501-01

• High output & low profile.
• Dimensions: 1200mm x 600mm , 0.72m2
• Thickness 18mm
